1. Create wireless access point¶
1.1. Background¶

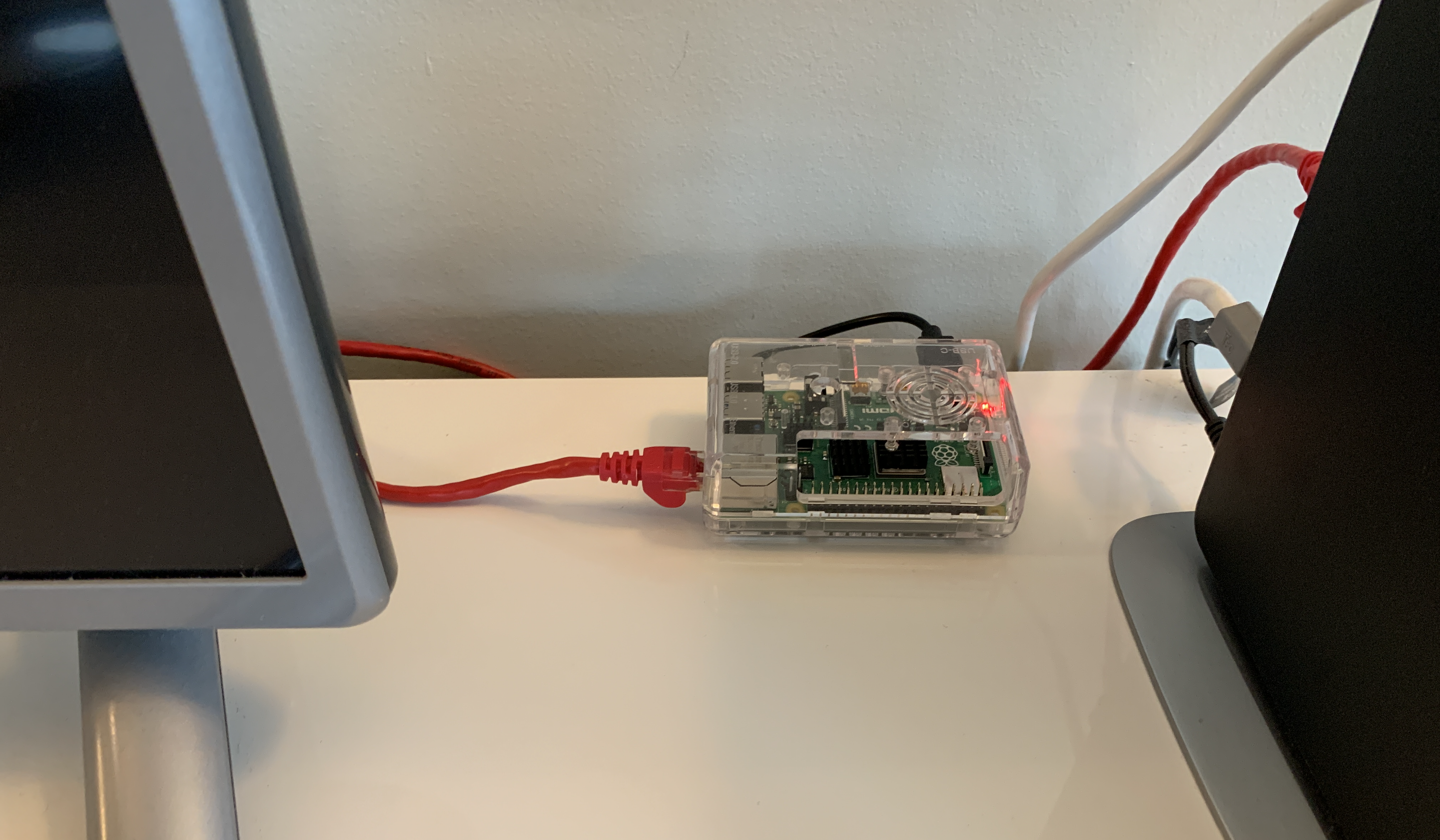

For the past few months I’ve had a Raspberry Pi 4 (raspi-4a) connected to my home network via ethernet cable and running 24/7. I can remote into the device using ssh from both within my local network and also from outside using port forwarding.
There are also other Raspberry Pi boards that connect to the same router via wifi. There are also computers, phones, iPads and other wireless devices that connect to the same wifi router. While every device has its own MAC address and operates on an assigned channel there is still a chance of conflicts, latency, and other non-optimal behavior when not using a router not designed to handle that capacity.
1.2. Objective¶
Reduce number of wifi devices connecting to the internet router by directing raspberry pi wireless traffic via the raspi-4a which is connected to the internet via ethernet. This raspi-4a device which acting as a wireless access point will broadcast its own SSID (“RAPI-NET”). The Raspi4a will still function normally as a raspberry pi while simultaneouly offering wireless access to any device with correct credentials.
1.3. Access Point set-up¶
This involves changes to various network configurations so it’s a good idea to clone the SD Card so that there is a point to revert any changes back to. Also, changes in network settings may result in lost SSH connection so use a monitor and keyboard to be on the safe side…
(1) Check for updates
sudo apt-get update
sudo apt-get upgrade
(2) Install required packages
sudo apt-get install hostapd # to create a wireless hotspot
sudo apt-get install dnsmasq # easy-to-use DHCP and DNS server
sudo apt install bridge-utils # to enable bridge between eth0 and wireless
(3) Switch off servces before changing any configurations:
sudo systemctl stop hostapd
sudo systemctl stop dnsmasq
(4) Edit the dhcpcd configuration file
sudo nano /etc/dhcpcd.conf
and add:
# These first 2 lines were added later after lots of trial and error...
# Both are needed to ensure that the bridge works correctly.
# They stop the eth0 and wlan0 ports being allocated IP
# addresses by the DHCP client on the Raspberry Pi
denyinterfaces wlan0
denyinterfaces eth0
# Next configure a static IP for the wlan0 interface
interface wlan0
static ip_address=192.168.4.1/24
nohook wpa_supplicant
# static IP address to enable ssh and also accessing
# the internet from the raspberry pi.
# This bit was also discovered after some trial and error...
interface br0
static ip_address=192.168.1.184/24 # assigning to AP
static routers=192.168.1.1
static domain_name_servers=8.8.8.8
(5) Restart the dhcp service:
sudo service dhcpcd restart
(6) Configure the DHCP server/masq configuration file
sudo nano /etc/dnsmasq.conf
and add:
interface=wlan0
dhcp-range=192.168.4.2,192.168.4.20,255.255.255.0,24h # addresses for clients
The way to undersand this is that for wlano
we are going to provide IP addresses between 192.168.4.2 and 192.168.4.20
, with a lease time of 24 hours. If providing DHCP services for other network devices (e.g. eth0
), we would add more sections with the appropriate interface header, with the range of addresses intended to provide to the additional interface.
There are many more options for dnsmasq. See dnsmasq documentation for more details.
(7) Restart service
sudo systemctl start dnsmasq
(8) Configure the access point host software
and add:
nterface=wlan0
#driver=nl80211
bridge=br0
hw_mode=g
channel=7
wmm_enabled=0
macaddr_acl=0
auth_algs=1
ignore_broadcast_ssid=0
wpa=2
wpa_key_mgmt=WPA-PSK
wpa_pairwise=TKIP
rsn_pairwise=CCMP
ssid=RASPI-NET # choose ssid as desired
wpa_passphrase=<password_goes_here>
# hw_mode options above:
# a = a = IEEE 802.11a (5 GHz)
# b = IEEE 802.11b (2.4 GHz)
# g = IEEE 802.11g (2.4 GHz)
# ad = IEEE 802.11ad (60 GHz) (Not available on the Raspberry Pi)
The commented out driver=nl80211
would have been needed if using as stand-one access point without a a bridge.
(9) Edit the following file:
sudo nano /etc/default/hostapd
to indicate location of the config file:
DAEMON_CONF="/etc/hostapd/hostapd.conf"
(10) Enable and start service
sudo systemctl unmask hostapd
sudo systemctl enable hostapd
sudo systemctl start hostapd
and check status:
sudo systemctl status hostapd
sudo systemctl status dnsmasq
(11) Add routing and masquerade by first…
sudo nano /etc/sysctl.conf
and uncomment/enable this list:
net.ipv4.ip_forward=1
**(12) and then, add a masquerade for outbound traffic on eth0:
sudo iptables -t nat -A POSTROUTING -o eth0 -j MASQUERADE
and save the iptables rule
sudo sh -c "iptables-save > /etc/iptables.ipv4.nat"
(13) Edit the following file
sudo nano /etc/rc.local
and add the following line just above the “exit 0” so that the these rules install on boot:
iptables-restore < /etc/iptables.ipv4.nat
(14) Now, reboot the raspberry pi and the test before moving on to the next part of the set-up.
Using a wireless device, search for networks.
The network SSID specified in the hostapd configuration should discoverable, and it should be accessible with the specified password.
If SSH is enabled on the Raspberry Pi access point, it should be possible to connect to it with ssh pi@192.168.4.1
(15) Create bridge in order to share internet access
sudo systemctl stop hostapd
sudo brctl addbr br0 #add the bridge
sudo brctl addif br0 eth0 #make the connection
Create a file in order to create a linux bridge br0
and add a physical interface eth0
to the bridge:
sudo nano /etc/systemd/network/bridge-br0.netdev
and add these lines:
[NetDev]
Name=br0
Kind=bridge
(16) Configure the bridge interface br0 and the slave interface etho using .network files as follows:
sudo nano /etc/systemd/network/bridge-br0-slave.network
and add:
[Match]
Name=eth0
[Network]
Bridge=br0
sudo nano /etc/systemd/network/bridge-br0.network
and add:
Match] Name=br0 [Network] Address=192.168.10.100/24 Gateway=192.168.10.1 DNS=8.8.8.8
then restart service:
sudo systemctl restart systemd-networkd
Use brctl
to verify that bridge br0
has been created.
Then reboot and run:
sudo systemctl unmask hostapd
sudo systemctl enable hostapd
sudo systemctl start hostapd
There should now be a functioning bridge between the wireless LAN and the Ethernet connection on the Raspberry Pi, and any device associated with the Raspberry Pi access point will act as if it is connected to the access point’s wired Ethernet. The bridge will have been allocated an IP address via the wired Ethernet’s DHCP server. Do a quick check of the network interfaces configuration via ip addr
1.3.1. References¶
The steps above resulted from much trial-and-error. Along the way the good use was made of the following articles with much insight gained:
https://www.raspberrypi.org/documentation/configuration/wireless/access-point.md
https://thepi.io/how-to-use-your-raspberry-pi-as-a-wireless-access-point/
https://seravo.fi/2014/create-wireless-access-point-hostapd
https://howtoraspberrypi.com/create-a-wi-fi-hotspot-in-less-than-10-minutes-with-pi-raspberry/
http://raspberrypihq.com/how-to-turn-a-raspberry-pi-into-a-wifi-router/
https://www.instructables.com/id/Use-Raspberry-Pi-3-As-Router/
This might be interesting to explore one day….
